GEM-P outdoor LED display screen introduction

P series outdoor display is a full color LED

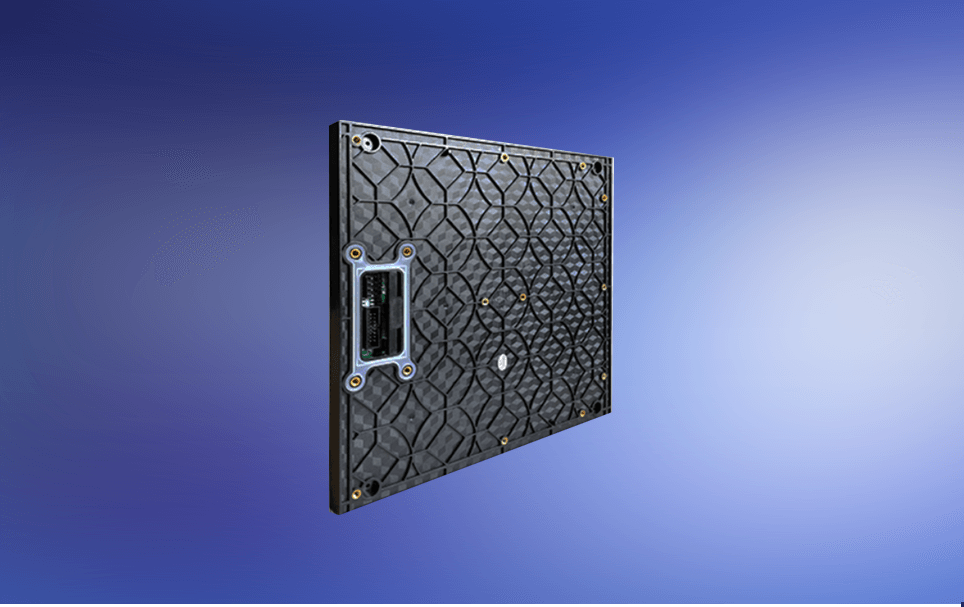

The module is separated from the power supply heat

Home Product P Series

Overview Parameters

Integrated design
Highlighted display screen
Diversified display modes
Intelligent WIFI wireless control
All-weather working
independent heat dissipation

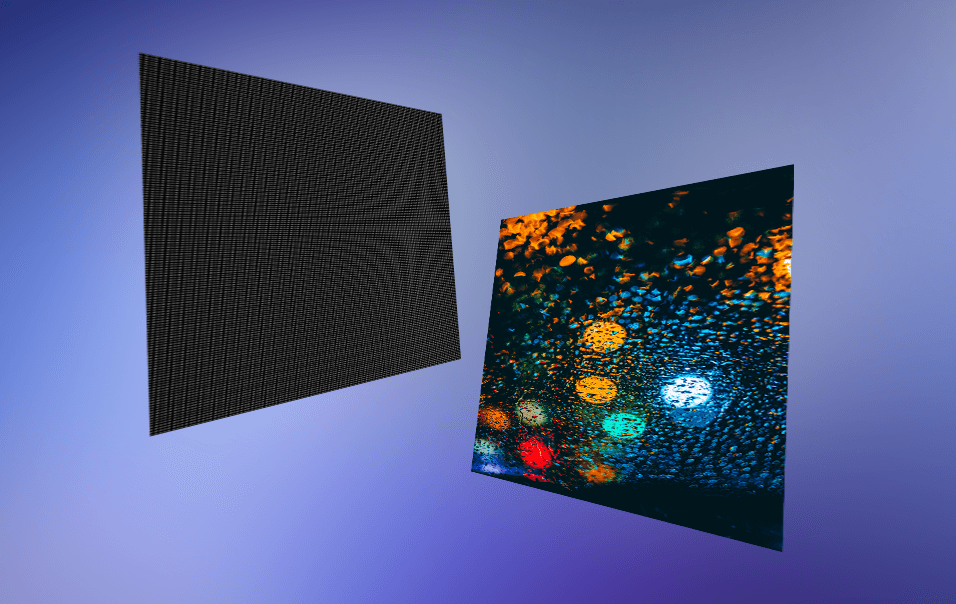

Outdoor large screen with HD imaging

The outdoor large screen can make the imaging clear and natural, immersive, with high resolution, higher image quality, and rich colors.
Seven reliable protective qualities

Waterproof, fireproof, moisture-proof, anti-static, anti-collision, salt spray, and anti-corrosion.

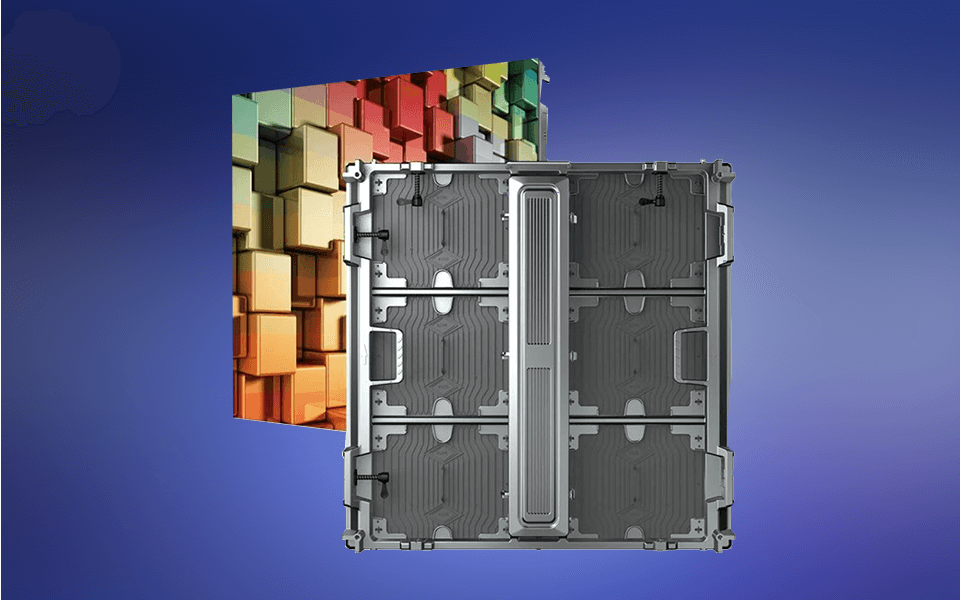

Safe and efficient box separation

The outdoor small spacing box has weight of 12kg/box, 160° visible angle, module flatness less than 0.1mm , and life>100000 hours.

Product Parameters

Model	P2.6	P3	P4	P5	P6	P8	P10	P16
Pixel Pitch (H/V mm)	2.6mm	3mm	4mm	5mm	6mm	8mm	10mm	16mm
LED Configuration	SMD1921	SMD 1921	SMD 1921	SMD 1921	SMD 2727	SMD 3535	SMD 3535	SMD 3535
Pixel Density	147456dot/㎡	111111dot/㎡	62500dot/㎡	40000dot/㎡	22500dot/㎡	15625dot/㎡	10000dot/㎡	4096dot/㎡
Module Size	250×250mm	160×160mm	256×128mm	320×160mm	320×160mm	256×128mm	320×160mm	256×256mm
Module Resolution	96×96dot	52×52dot	64×32dot	64×32dot	48×24dot	32×16dot	32×16dot	16×16dot
Product Size	500×1000mm	960×960mm	1024×1024mm	960×960mm	960×960mm	1024×1024mm	960×960mm	1024×1024mm
Cabinet Resolution	192×384dot	312×312dot	256×256dot	192×192dot	144×144dot	128×128dot	96×96dot	64×64dot
N.Cabinet Weight	15kg/Panel	35kg/panel	42kg/panel	35kg/panel	35kg/panel	42kg/panel	35kg/panel	42kg/panel
IP Rating ( back/front)	back IP45/front IP65
Brightness	＞5000cd/m2	4500-6000cd/㎡	4500-5500cd/㎡	4500-6000cd/㎡	4500-6000cd/㎡	4500-6000cd/㎡	约5000-7000CD/㎡	约5500-6500CD/㎡
Viewing Distance	2m	3m	4m	5m	6m	8m	10m	16m
Gray Scale	14-16bit
Max.Power Consumption	800W/m²	600W/m²	600W/m²	800W/m²	600W/m²	600W/m²	800W/m²	800W/m²
Ave.Power Consumption	260W/m²	280W/m²	280W/m²	350W/m²	280W/m²	280W/m²	350W/m²	380W/m²
Scan method	horizontal scan	1/13S	1/8S	1/8S	1/5S	1/5S	1/2S	恒流静态驱动
Refresh Rate	≥3840Hz
Environment	INDOOR/outdoor
Installation	Installation
Control Mode	Synchronous control system (wired control, LAN control)
Support Input	HDMI、DVI、DP、SDI
Operation Power	AC100~ 240V, 50/60Hz
Operating Temperature	﹣10℃～+60℃
Operating Humidity	10%-90%RH
Operating Life	100,000hours
